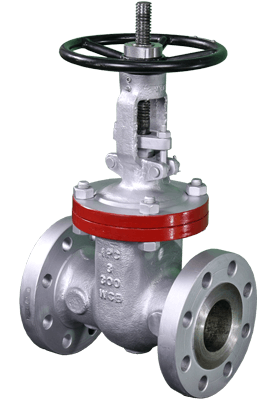

Gate Valve Bolted Bonnet
Gate Valve Supplier in India
IPC manufactures the full range of Gate Valves, which are ideal for bi-directional, low friction flow and shut-off as per international standards. Due to the flow characteristics of the wedge to seat design, Gate Valves are always operated in the full close or full open position.
IPC offer wide range of sizes in gate valve right from 2” to 24” (DN- 50 to DN -600) and pressure rating ranges from ASME class 150 through 4500. Higher pressure rating and bigger sizes can also be provided.

Benefits
Thoughtful design delivers accurate performance
Automatically adjusts the slight misalignments caused by pipeline deflections & thermal deformation
Manufacturing with advanced processes for best results and longevity
Superior strength due to Single piece forged Stem
Minimum torque due to flexible wedge/Split wedge construction

Specifications
Pressure rating ASME class 150 through 4500
Sizes - 1/2" to 24" (DN-15 to DN-600)
MFG standards - API 600 / bs 1414 / ASME b16.34 / MSS SP-144
Flange details - std as per ASME B16.5 Others as per BS, AWWA, EN, DIN, etc.
End to end dimensions - as per ASME B16.10
Testing standards - API 598 / BS EN 12266-part 1
